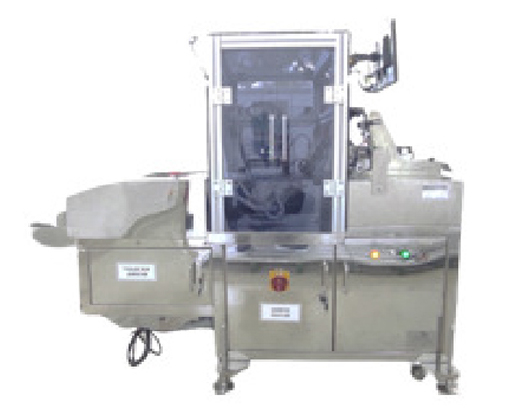

Serialization & Aggregation Machine
AUTHENTICATION 2D CODE:

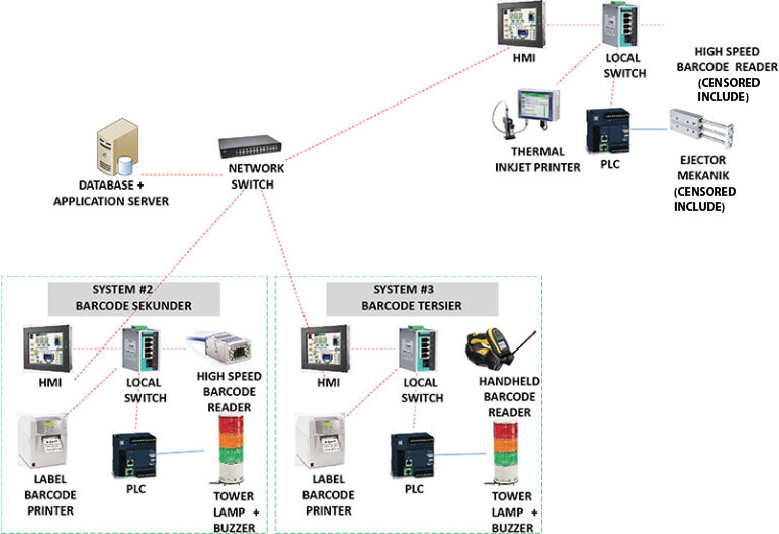

1. SERVER UNIT
2. SERIALIZATION MACHINE
3. AGGREGATION MACHINE
4. WAREHOUSE-SHIPMENT UNIT
QR Code
Data Matrix
Authentication 2D code

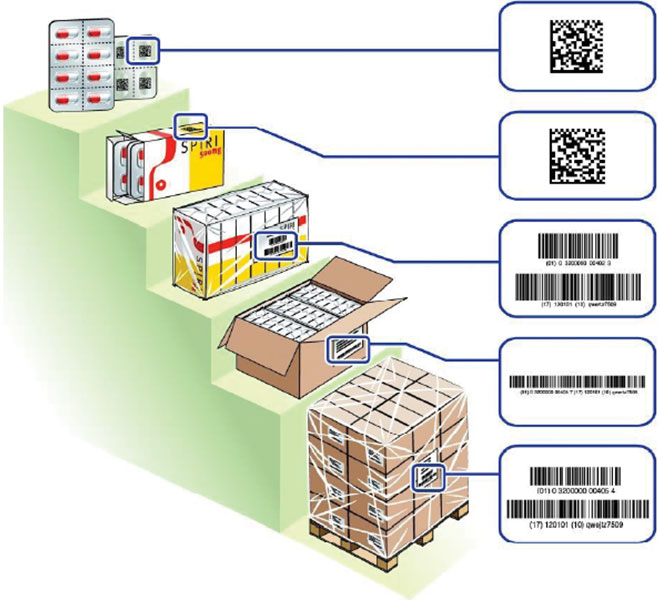

Provides a unique code for each primary, secondary, and tertiary packaging.
The code is in the form of a QR code or data matrix.
The code is stored in a database which is then used for the trace back process (trace & track).
Benefits of System Serialization and Aggregation Machine
- Individual user privileges (Complies CFR 21 part 11)
- Utilizes Industry 4.0 or IIoT (Industrial Internet of Things) technologies
- BPOM, GS1, and SSCC complies with the standards
- Graceful Shutdown (active data is not lost)
- Can operate with off-network mode (Network disconnected)
- Single source code (Collective Knowledges & Information)
- Full Touch Screen Operation
- Can be connected to ERP
- Recipe Based Setting
- Pause & Resume Operation
SERVER L3 AND MODULE
- Web based operation
- Connect to 3rd party system
- Product, Batch, QA Release, Work Order, User, Reporting Management
- Reporting module:
-User report
-System report
-Production report

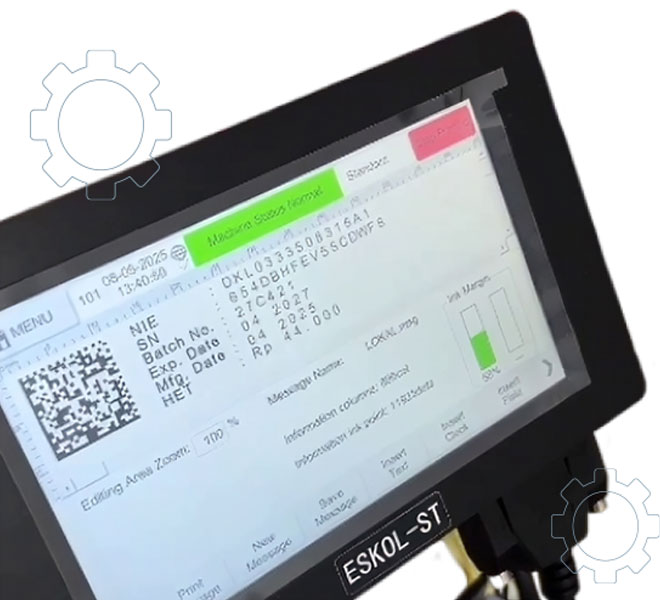

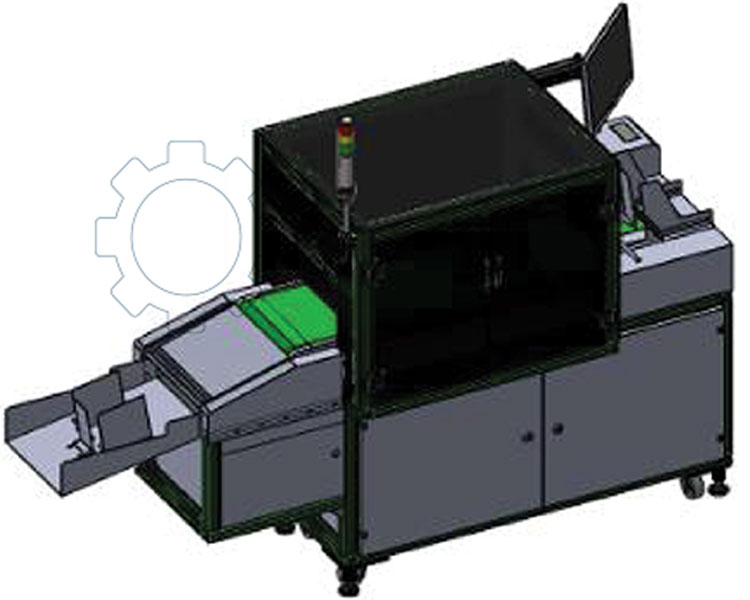

Serialization
Single program to manage the system and verifier (Barcode Reader/Vision)
Reject confirmation
Manual status change (Sample/Deactive)
Guaranteed no duplicate serial numbers during the printing process

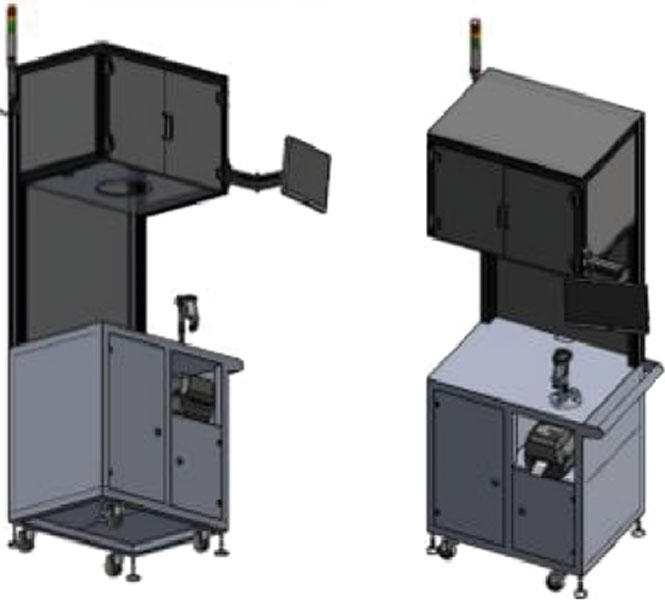

Aggregation
1 station can be used by 4 users simultaneously for 1 work order
TOP SCAN aggregation system includes barcode status indicators
Supports aggregation up to level 3
Rework operation
Warehouse-shipment unit
- PC for warehouse
- Module shipment
- Printer label

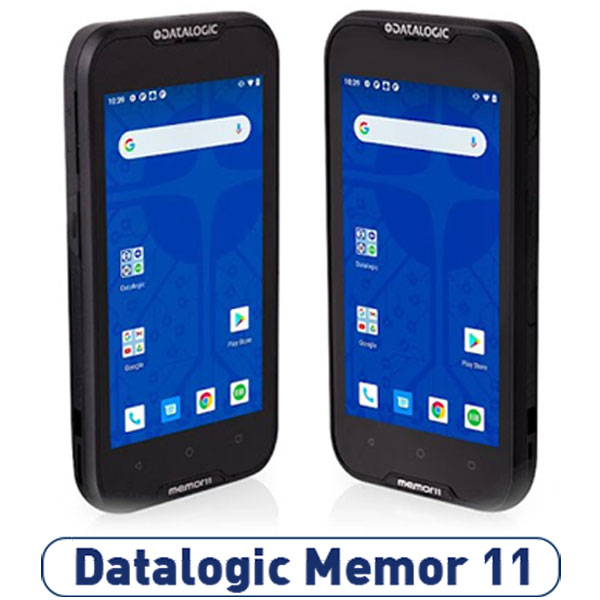

- Data Memor/Handheld scanner
